Powerwall Home Solar Energy Storage System 10KWh 7KWH 5KWH 3KWH Lithium Battery

Product Categories

guangzhou pmd technology co ltd

Contact Now

Place of Origin : china

MOQ : negotiated

Price : negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : negotiated

Battery Type : LiFePO4

Voltage : 48V /51.2V

Weight : 90kg

Warranty : 5 Years

Capacity : 200Ah

Cycle life : 6000 Cycles @1C 90%DOD

Contact Now

10KWh 7KWH 5KWH 3KWH Powerwall Home Battery Home Solar System Energy Storage With 51.2V 200Ah Lithium Battery

Product Paramenters

Chemistry	Lithium Iron Phosphate (LiFePO4) Cell
Rated Voltage (V)	51.2V
Rated Capacity (Ah)	200Ah
Rated Energy (kWh)	10.24Kwh
Usable Battery Energy(kWh)	9.7Kwh
Standard Charge /Discharge Current (A)	100A
Battery Max Charge/Discharge Current (A)1s	200A
Weight (Kg)	100 Kg
Dimensions (H * W * D) mm	830460290
Battery Depth of Discharge	95%
Working Voltage Range (V)	46-58.4V
Working Temp. (°C)	Charging: 0 ～50; Discharging: -20～55
Certificate	UN38.3 MSDS CE
Cycle Life (80% DOD at 25°C)	>6000times,20years design life
Components	16S1P
Communication Port	CAN,RS485& RS232 option
Inverter Matched	Solax,Deye,Goodwe,Growatt,Victron,Sofar,Sungrow,Luxpower,Schneider,etc
IP Protection	IP 50
Warranty	5years

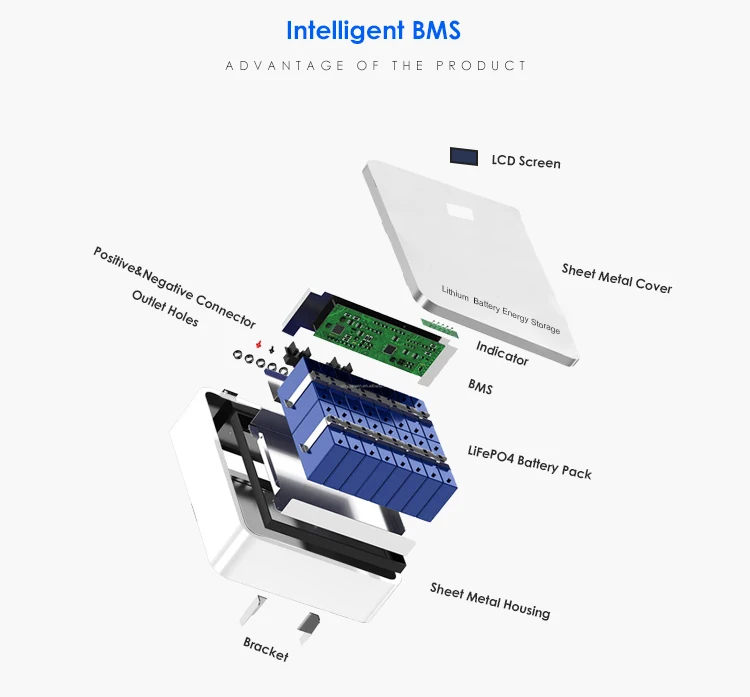

Battery Protection Management System BMS Function	Automatic Functions Low Voltage Disconnect Short Circuit Protection Over Voltage Protection Over Current Protection Over Charge Protection Over Discharge Protection Over Temperature Protection Internal Cell Balancing
Installation	Ground Mounted / Wall Hanging

FAQ

1.How can I get the price?

-Pls state the requirements details clearly, and keep in touch with us,

because we will contact you to get the details that we need to for quotation.

2.What is your payment term?

-T/T, Western Union, Credit card, and Paypal, etc.This is negotiable.

3.What is the shipping method?

-It could be shipped by sea. Please confirm with us before placing orders.

4.How do you make our business long-term and good relationship?

(1). We keep good quality and competitive price to ensure our customers benefit ;

(2). We respect every customer as our friend and we sincerely do business and make friends with them,

no matter where they come from.

5.What kind of trade methord can we do?

-FOB,CIF ,DDP,DDU,etc.
