12KW 10KW 8KW Solar Panel System For Home Hybrid Solar System Solar Energy System

Product Categories
guangzhou pmd technology co ltd
Contact Now

12KW 10KW 8KW Solar Panel System For Home Hybrid Solar System Solar Energy System

Place of Origin : china

MOQ : negotiated

Price : negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram

Delivery Time : negotiated

Battery Type : LiFePO4

Output Power Range : 8~12 kWh

Cycle life : 6000 Times

Warranty : 5 Years

Weight : 96kg

Nominal Voltage : 51.2V

Contact Now

12KW 10KW 8KW Solar Panel System For Home Hybrid Solar System Solar Energy System

Top Service
High Quality
OEM/ODM Customized
After Sales
We will test all products and send test videos or pictures to customer for confirmation.
Our products have obtained UL, CE, UN38.3, MSDS, IEC and other international certifications.
More than 20 years industry experience, provide customized energy storage system
solutions.
We are committed to providing you with high-quality, reliable products and services.
About us

Guangzhou PMD Technology Co., Ltd. is a high-tech enterprise specializing in the research and development, production and sales of energy storage batteries and solar street lights, with a strong R & D team and domestic advanced production equipment and manufacturing technology, the products have always been based on the concept of green environmental protection and intelligent control.

Quality System
Quality is first in our business because we value our customer satisfaction. We strive to provide our customers with products and services which meet and even exceed their expectations. We are committed to continuous improvement and have a Top Operation in the business. Our Operating Philosophy is the based on seek development for the enterprise, create value for customers, seek benefits for employees, and contribute to social as well as dedicating to be Pioneering in innovative, improvement
Specification
12KW 10KW 8KW Solar Panel System For Home Hybrid Solar System Solar Energy System

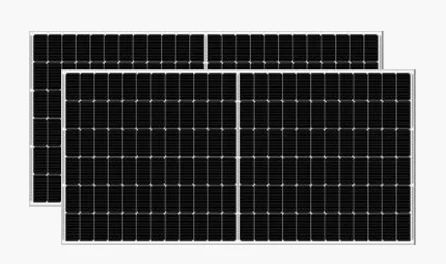

Mono Solar Panels
Peak Power Watts: 450W
Maximum Power Voltage: 41.4V
Maximum Power Current: 9.91A
Open Circuit Voltage: 49.3V
Short Circuit Current: 10.41A
Dimensions:2279×1134×30mm
Weight:28.2 kg
Solar Inverter
Type: Hybrid / Off Grid / On Grid
Max.DC Input Power: 3KW-30KW
Max. DC Input Voltage: 1000V
MPPT Voltage Range: 180-950V
Rated Grid Voltage: 110V/230V/400V
Warranty: 5 Years (STD) 10 Years (Optional)
12KW 10KW 8KW Solar Panel System For Home Hybrid Solar System Solar Energy System
12KW 10KW 8KW Solar Panel System For Home Hybrid Solar System Solar Energy System

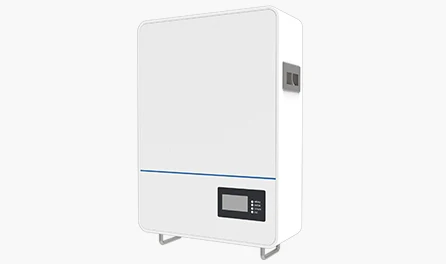

LFP Lithium Battery
Capacity(kWh): 3kwh-30kwh
Operating Voltage(Vdc): 85-118
Max.charge/discharge Current(A) : 100A
Charge/Discharge Current (A): 100A
Standard Power(kW):25
Maximum Power(kW):3
Life Cycle: 6000 time >80%DOD

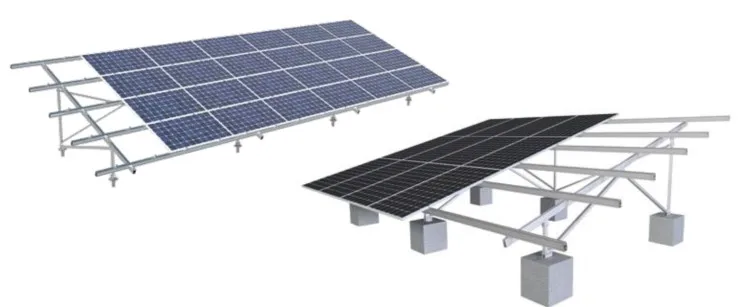

PV Mounting System
Mounting Rail & Rail Splice Kit; Mid & End Clamps; L Foot Asphalt Shingle Moount & Hanger Bolt Optional Cable Clip & Tie Optional Ground Clip & Lugs Optional
12KW 10KW 8KW Solar Panel System For Home Hybrid Solar System Solar Energy System
12KW 10KW 8KW Solar Panel System For Home Hybrid Solar System Solar Energy System

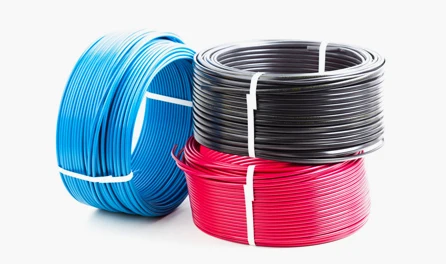

DC Cable & MC4 Connector&Accessories
DC cable special for solar 4mm²;
MC4 Connector;
AC Cooper cable:ZR-YJV22-0.6;
Grid connected cabinet,including Power meter and sign of power meter,DC-AC sign;
DC & AC Disconnect Switch;
PV Tools
Certifications
12KW 10KW 8KW Solar Panel System For Home Hybrid Solar System Solar Energy System
UL, CE, UN38.3, MSDS, IEC and other international certifications
FAQ
1: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
2: What can you buy from us?
A: lithium-ion single cell, battery pack, photovoltaic panel, indoor and outdoor solar energy storage power system, portable
energy storage power system, etc.
3: Can you have a sample order?
A: Yes, we welcome sample order to test and check quality.
4: What kind of certificates could you provide for these batteries?
A: We have CE,CB,KC,MSDS,UN38.3 for most our current products, if It's custom-making design, usually no current certificates, we could apply for you if you need, but the related fees should be paid by your side, and if your order is big enough, certificate fees can be refunded.
